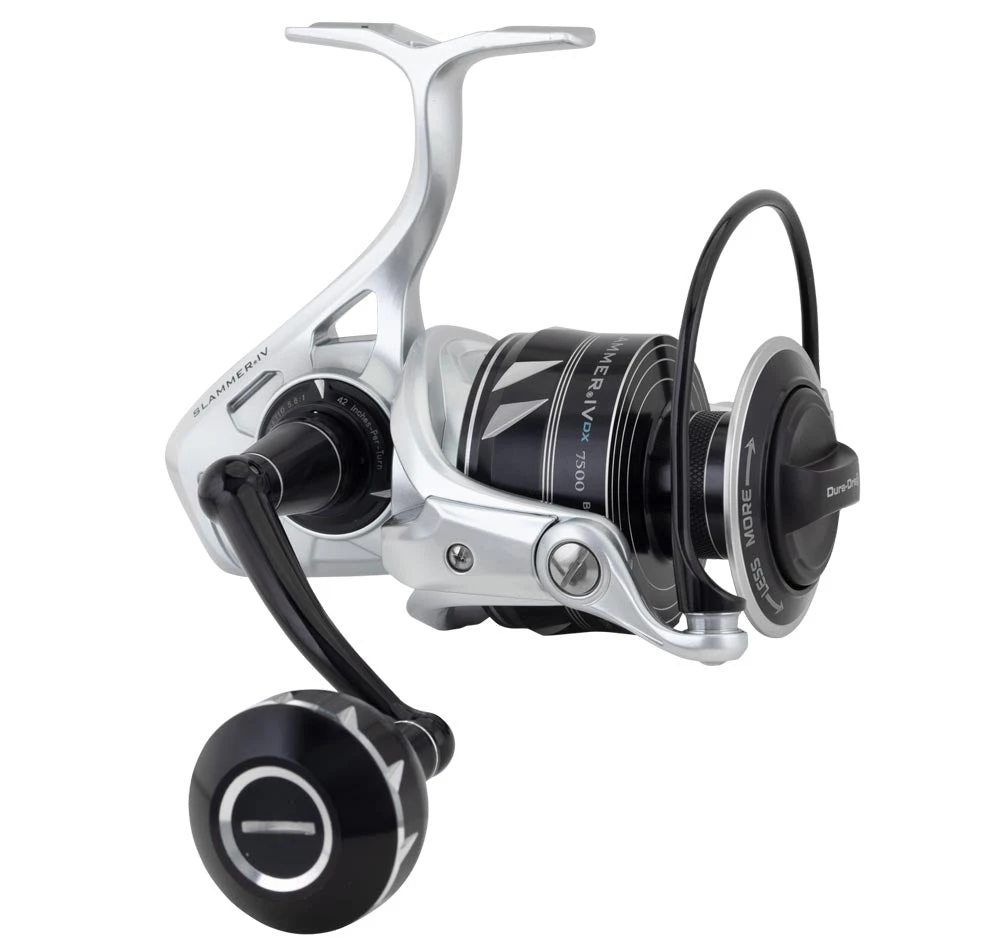

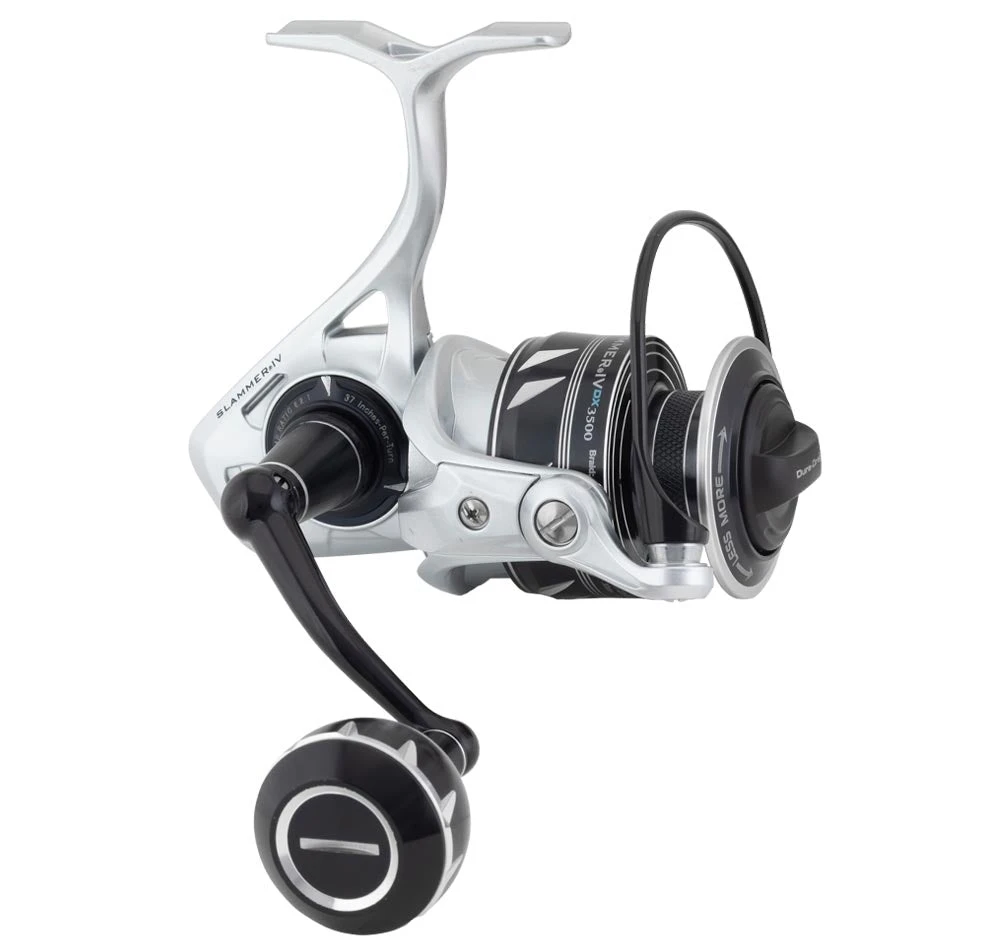

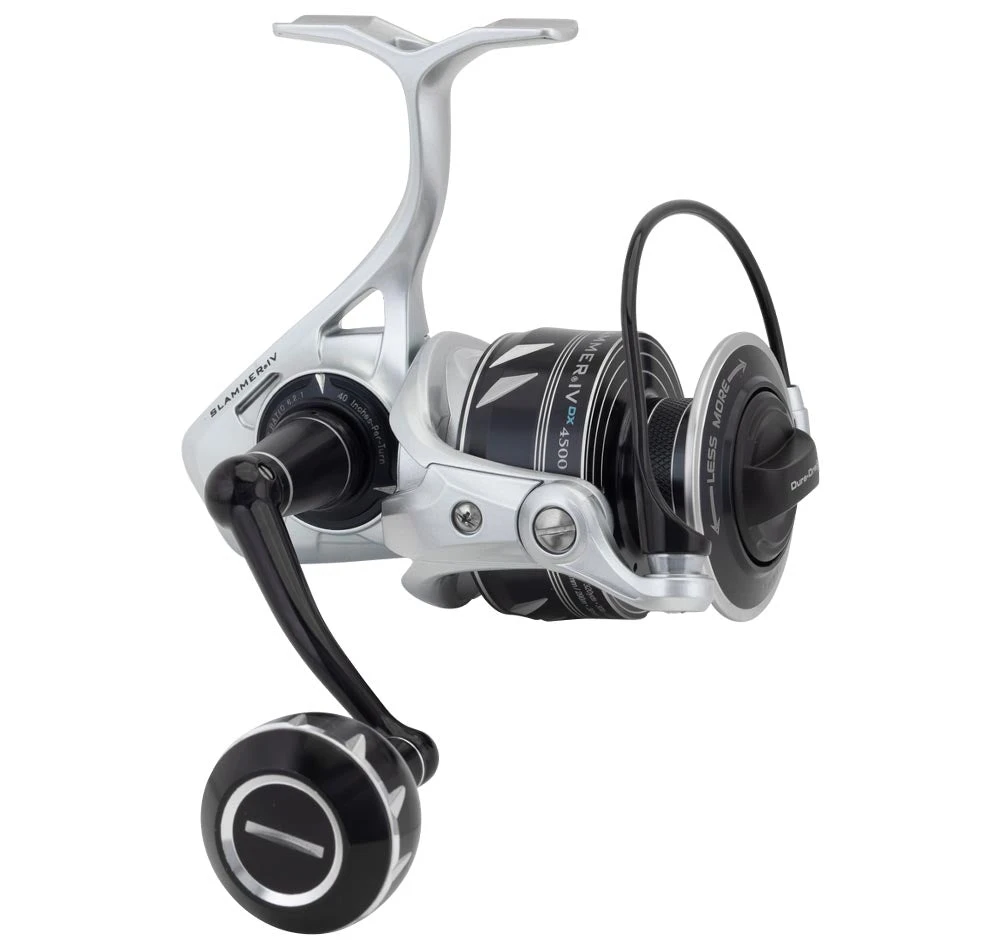

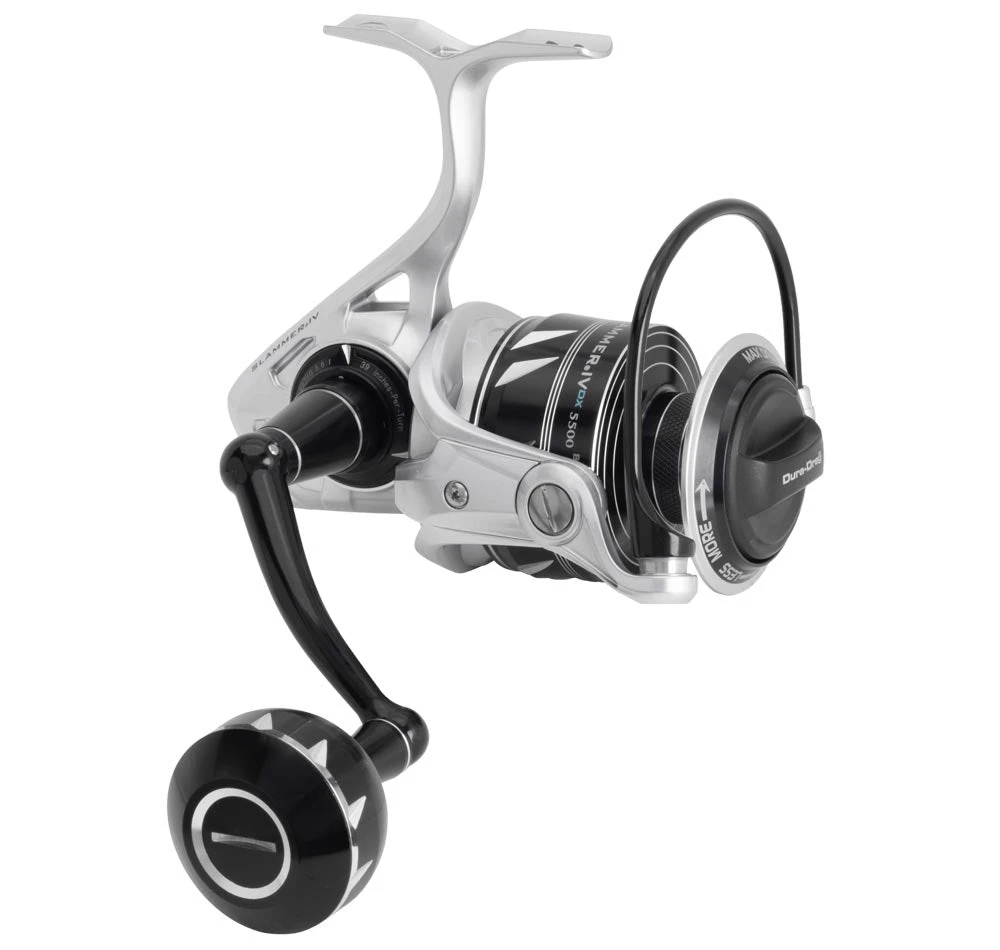

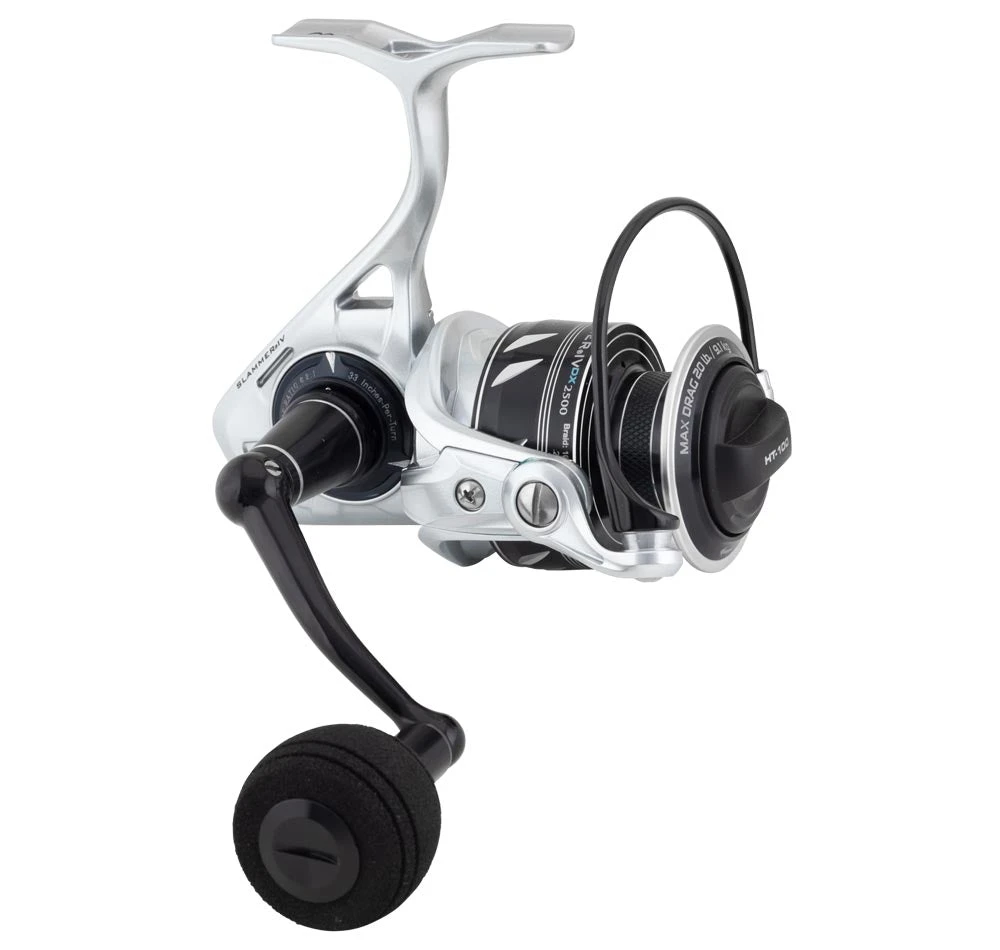

Penn Slammer IV DX Spin Reel

 PENN SLAMMER 4 DX SPINNING REEL

The Slammer IV DX takes PENN’s class leading Slammer IV up a notch, with enhanced cosmetics and added technology to offer another level of capability in taming the hardest fighting sports fish. For best-in-class durability, PENN’s renowned CNC Gear technology features upgraded, ultra-strong stainless steel main and pinion gears. The Slammer IV DX’s Dura-Drag is also dually supported with an additional bearing incorporated in the spool compared to the standard Slammer IV. An exclusive silver and black cosmetic has also been incorporated across the range, along with a spare Hyperlon handle knob for the ultimate in comfort on the water.

Features:

• CNC Gear Technology with ultra-durable stainless steel used for both main gear and pinion gear
• 9+1 Sealed Stainless Steel Ball Bearing System
• Dual bearing supported Slammer Drag System with Dura Drag (*Excluding 2500 size which features HT-100 drag) ranging up to 22kg of pressure in largest 8500 size
• Hydrophobic bearing in line roller
• Line capacity rings etched into spool
• Braid ready design to stop superline slipping on spool
• Spare Hyperlon handle knob provided in addition to standard fitted metal knob
• Available from 2500 to 8500 size.

UPGRADES OVER STANDARD SLAMMER IV

• Upgraded stainless steel CNC Gear Technology for ultra durable main and pinion gear
• Additional bearing in the spool– 2 in the spool compared to 1 in standard Slammer IV to give Slammer IV DX’s Dura-Drag dual support
• Spare Hyperlon handle knob for comfort
• DX range exclusive silver and black cosmetic

MODEL	BRAID CAPACITY M/MM	BRAID CAPACITY YD/LB	MONO CAPACITY M/MM	MONO CAPACITY YD/LB	GEAR RATIO	RECOVERY RATE	MAX DRAG KG	DRAG TYPE	BEARING COUNT	WEIGHT
2500DX	220/0.23 160/0.25 120/0.30	240/10 220/15 160/20	235/0.23 160/0.28 130/0.31	255/6 175/8 140/10	6.2:1	33in | 84cm	9.1	HT-100	9+1	312g
3500DX	245/0.23 200/0.25 150/0.30	310/10 270/15 220/20	330/0.23 240/0.28 180/0.31	360/6 285/8 220/10	6.2:1	37in | 94cm	13.6	Dura-Drag	9+1	394g
4500DX	355/0.23 290/0.25 230/0.30	390/15 320/20 250/30	390/0.25 290/0.28 215/0.33	425/8 320/10 235/12	6.2:1	40in | 102cm	13.6	Dura-Drag	9+1	425g
5500DX	455/0.25 345/0.30 305/0.33	500/20 380/30 335/40	390/0.28 300/0.33 210/0.36	430/10 330/12 230/15	5.6:1	39in | 99cm	18.1	Dura-Drag	9+1	629g
6500DX	445/0.30 375/0.33 305/0.36	485/30 410/40 335/50	355/0.33 315/0.36 185/0.38	390/12 345/15 205/20	5.6:1	42in | 107cm	18.1	Dura-Drag	9+1	686g
7500DX	485/0.33 400/0.36 365/0.38	530/40 440/50 400/65	450/0.36 300/0.38 200/0.46	490/15 330/20 220/30	4.7:1	38in | 97cm	22.7	Dura-Drag	9+1	814g
8500DX	665/0.33 550/0.36 505/0.38	730/40 600/50 555/65	415/0.46 280/0.56 240/0.61	455/20 310/30 260/40	4.7:1	42in | 107cm	22.7	Dura-Drag	9+1	867g
