20 SALTIGA SPIN REELS

REEL FEATURES:

• Monocoque Body – MQ Body will take Saltiga to the next level. The MQ system does not require a body cover, instead using an engine plate to screw directly to the body. Eliminating the need for screws to hold a body cover in place. MQ body improves the strength of the reel, it also improves the water-resistance of the body and allows a larger diameter drive gear to be installed.
• G1 Duralumin Drive Gear – The larger diameter drive gear. Increasing the diameter by 12% and also increasing thickness reduces the amount of wear, including twist and deformation to both the drive & pinion gears. In comparison to 15 Saltiga, it is more than double the strength. New gear design combined with MQ body makes 20 Saltiga the pinnacle of saltwater spinning reels.
• Aluminium Air Rotor – More than twice as rigid. The newly designed aluminium air rotor is more than double the rigidity compared to 15 Saltiga. It is also 50% more durable than the famous original Z series Saltiga of 2002.
• Automatic Tournament Drag (ATD) – Drag durability more than 10 times that of 15 Saltiga. In comparison to 15 Saltiga drag washers it is more than 10 times more durable with significantly increased drag longevity. Adding drag washers means the workload is spread evenly across the drag stack. By designing the drag with smaller washers, the maximum pressure per washer is decreased, but by adding more washers increased pressure is created.
• ABS Long Cast Spool – Compared to conventional spools, the LC-ABS has been shown to increase the average flight distance by approx. 5% due to its reduced weight and modified shape.
• Air Rotor – Lighter, stronger and more balanced than any rotor system that’s come before, ‘Air Rotor’ delivers a great leap forward in rotor design and function and delivers the ultimate line roller support. Made from Zaion and featuring a redesigned arch that disperses pressure to the lower section of the rotor to reduce stressing and flexing, the design is further enhanced with a hollowed out construction reducing weight, while increasing reel sensitivity and rotational balance.
• Corrosion Resistant Ball Bearings (CRBB) – Lasting 12 times longer than standard stainless steel bearings Daiwa’s CRBBs feature specially treated stainless steel, and a protective shield on the bearing race that seals out sand, fine grit, salt crystals and other abrasives. The result is a longer lasting bearing that’s protected from the corrosive elements that destroy traditional bearings.
• Air Bail – Daiwa’s innovative bail design features a hollow tubular stainless steel bail that delivers maximum rigidity and strength with minimum weight. Featuring a smooth protrusion-free design and construction line easily slides unencumbered along the Air Bail towards the line roller for trouble free line control.
• Mag Sealed Body – Ultimate protection is delivered to the engine room of the reel with a magnetised oil seal located on the main shaft of the reel’s rotor shutting the door to the elements and unwanted intruders. Dust, water, and salt intrusion into the inner workings of a reel are a thing of the past with MagSeal.
• Mag Sealed Bearings – MagSeal protection is no longer just for the main shaft and rotor of a reel with MagSealed Ball Bearings providing ultimate protection for the most at risk location such as the engine side plate and line roller.
• Mag Sealed Line Roller – One of the hardest working and exposed areas of a spin reel is provided with ultimate protection with a MagSealed line roller bearing shutting out the elements for optimum line roller protection, performance and longevity.
• Twist Buster II – The new and improved line twist reduction system takes line taming to another level with its tapered line roller enhanced to eliminate line twist like never before. More advanced and more equipped at reducing twist in fluorocarbon and mono than its predecessor, Twistbuster II is the answer to your line twist nightmares.
• Silent Ocillation – Silent Oscillation combines Digigear drive technology with dampening washes for noise free operation. Increased durability, and a reduction in reel noise are all achieved with Silent Oscillation.
• Metal Ball Knob – Providing maximum contact between handle knob and hand, ball knobs are designed for optimal rotation balance, rotation, and functionality.

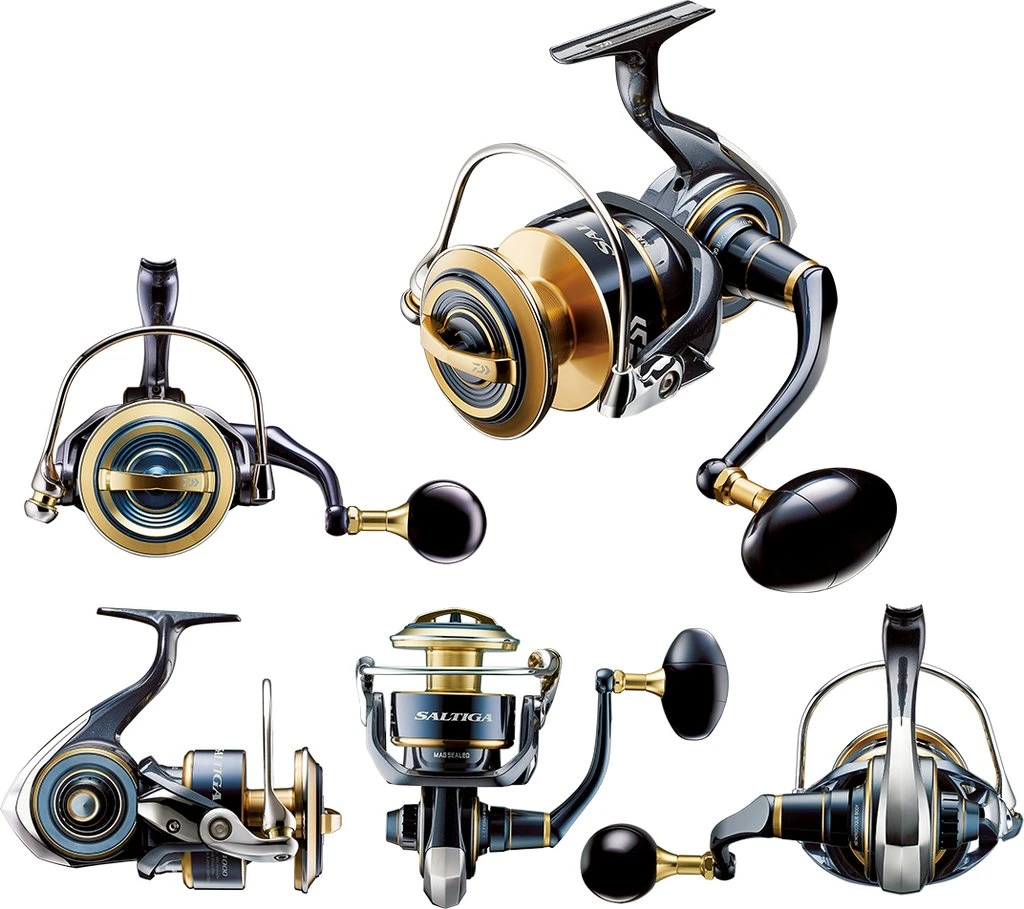

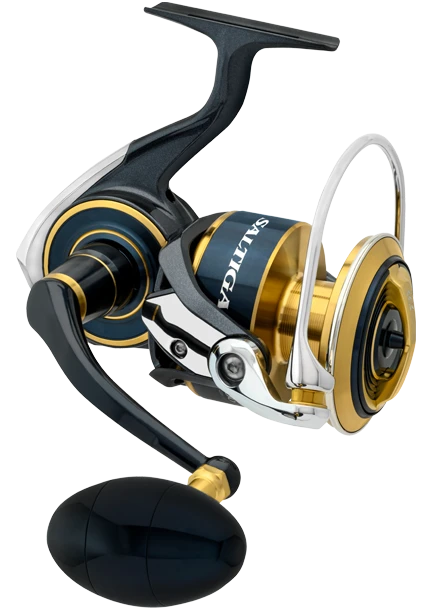

Daiwa 20 Saltiga Spin Reel
Product Code	Braid Capacity (PE/m)	Drag Power (kg)	Gear Ratio	Retrieve Per Crank	Bearings	Weight
20 SALTIGA (G) 8000-P	PE 4/300m	25kg	4.8:1	92cm	12BB (6CRBB-2MSBB)	645grams
20 SALTIGA (G) 10000-P	PE 5/300m	25kg	4.8:1	98cm	12BB (6CRBB-2MSBB)	645grams
